Gears

When 2 gears touch:

r1ω1=r2ω2r_1 \omega_1 = r_2 \omega_2

Pitch

Aka. module of the gear wheel. Denoted by mm.

d=mz=2rd = mz = 2r

Here:

  • dd - pitch circle diameter
  • mm - pitch of the gear
  • zz - no. of teeth in the gear
  • rr - radius of the gear

Epicyclic gears

In below equations:

  • ωp\omega_p - Absolute angular speed of planet wheel PP

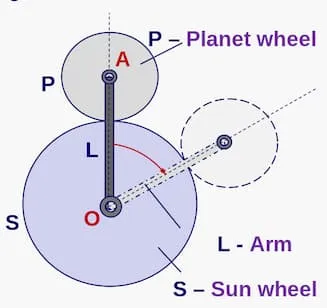

External

External epicyclic gears

ωp=(1+rSrP)ωL(rSrP)ωS\omega_p=\Big(1+\frac{r_S}{r_P}\Big)\omega_L - \Big(\frac{r_S}{r_P}\Big)\omega_S

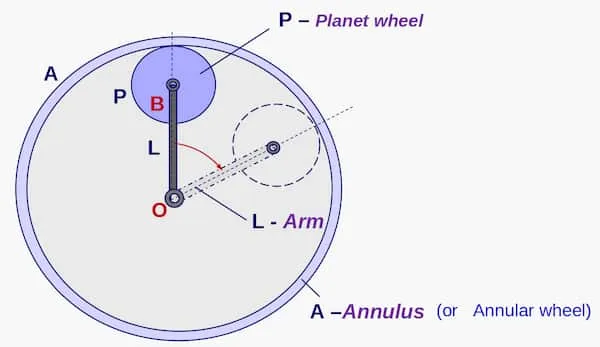

Internal

Internal epicyclic gears

ωp=(1rArP)ωL+(rArP)ωA\omega_p=\Big(1-\frac{r_A}{r_P}\Big)\omega_L + \Big(\frac{r_A}{r_P}\Big)\omega_A
